Power Range: 300 - 600 kVA

3:3

Multi Power2 is the evolution of our modular UPS, which aims to offer higher power density, simpler integration to both existing and new installations, and last but not least, enhanced operating efficiency and global flexibility to reduce both the upfront investment and the day-to-day operational costs.

Thanks to its modular architecture and several configurations available, the system can be adapted to the load demands to avoid any oversizing and provide the best performance in every working condition.

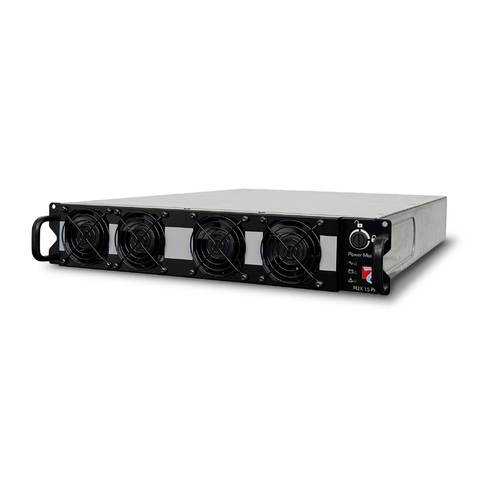

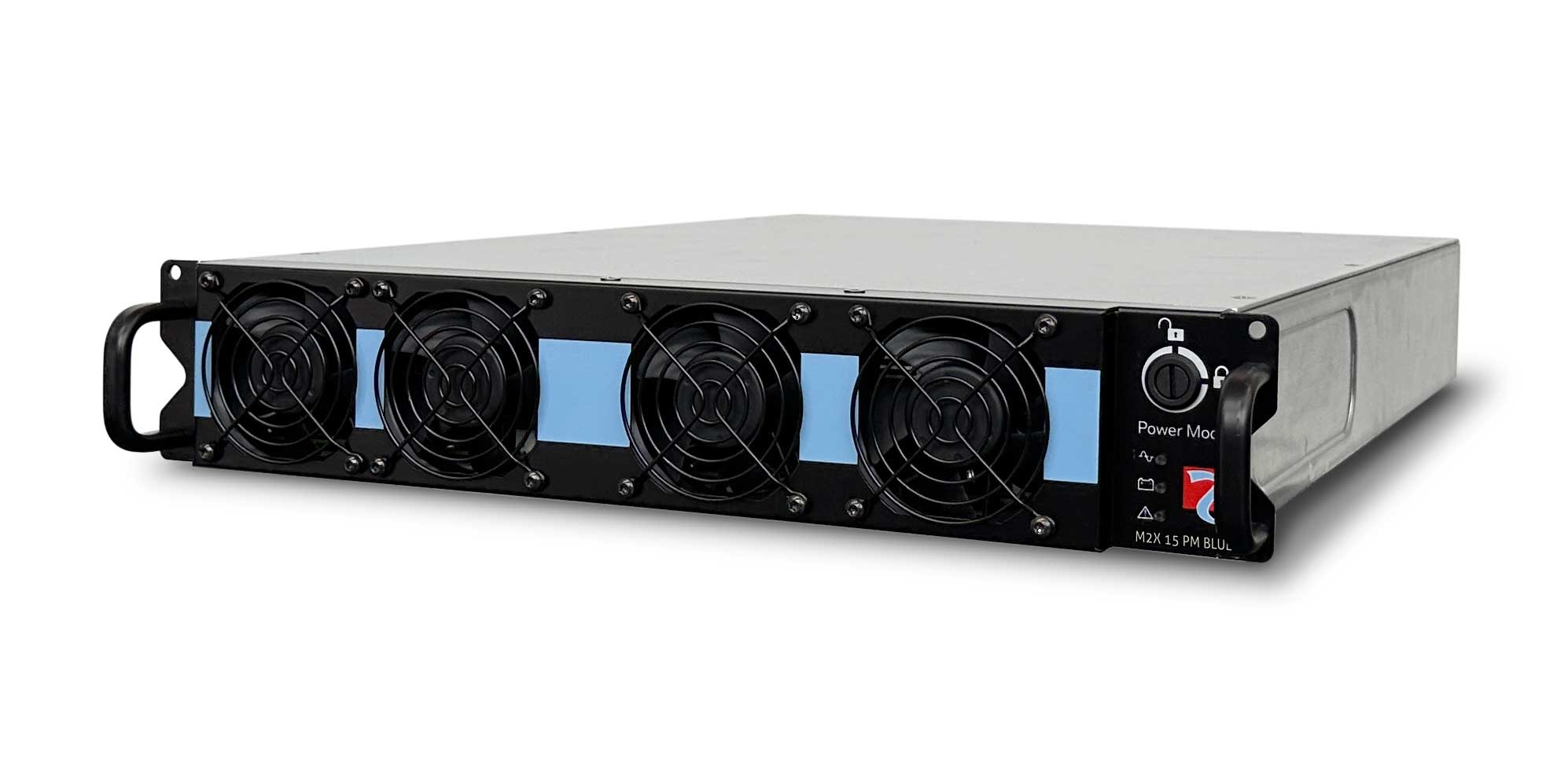

With a new extremely high-density power module, available in two different models, MP2 reaches up to 600 kW in a single UPS and up to 2400 kW with 4 systems in parallel.

Request Information

HIGHLIGHTS

Ultra-high efficiency
Ultimate availability
Risk-free scalability
Smart Modular Architecture (SMA)
Truly sustainable

Brochures and data sheets

Select File Language:

Multi Power2

Technical specifications of the model

The biggest challenge of our time is sustainability. This is the reason why we developed the Multi Power2 Power Module based on the latest silicon carbide technology (SiC), which reduces cooling requirements whilst enabling more compact, more reliable, and more robust solutions.

The Power Modules could reach an efficiency up to 98.1% in ON LINE double conversion, providing the best power supply to critical equipment whilst minimising operating costs and energy losses.

High efficiency is achieved even in case of extremely low loads thanks to the EFFICIENCY CONTROL Mode, where the system will automatically activate only the required number of Power Modules, ensuring the highest efficiency and, at the same time, the required redundancy level. Multi Power2 can also work in temperatures up to 40 °C (without any derating), minimising the demand and consumption of cooling systems.

Extremely Flexible

The Multi Power2 has been conceived to meet the specific needs of each installation and quickly adapt to any load increase. Thanks to the hot-swappable Power Modules, any increase in power can be done while the unit is still working in ON LINE double conversion without any disruption to the load. All the major components of the UPS are modular and can be easily added and/or replaced, minimising the site intervention cost and avoiding any downtime.

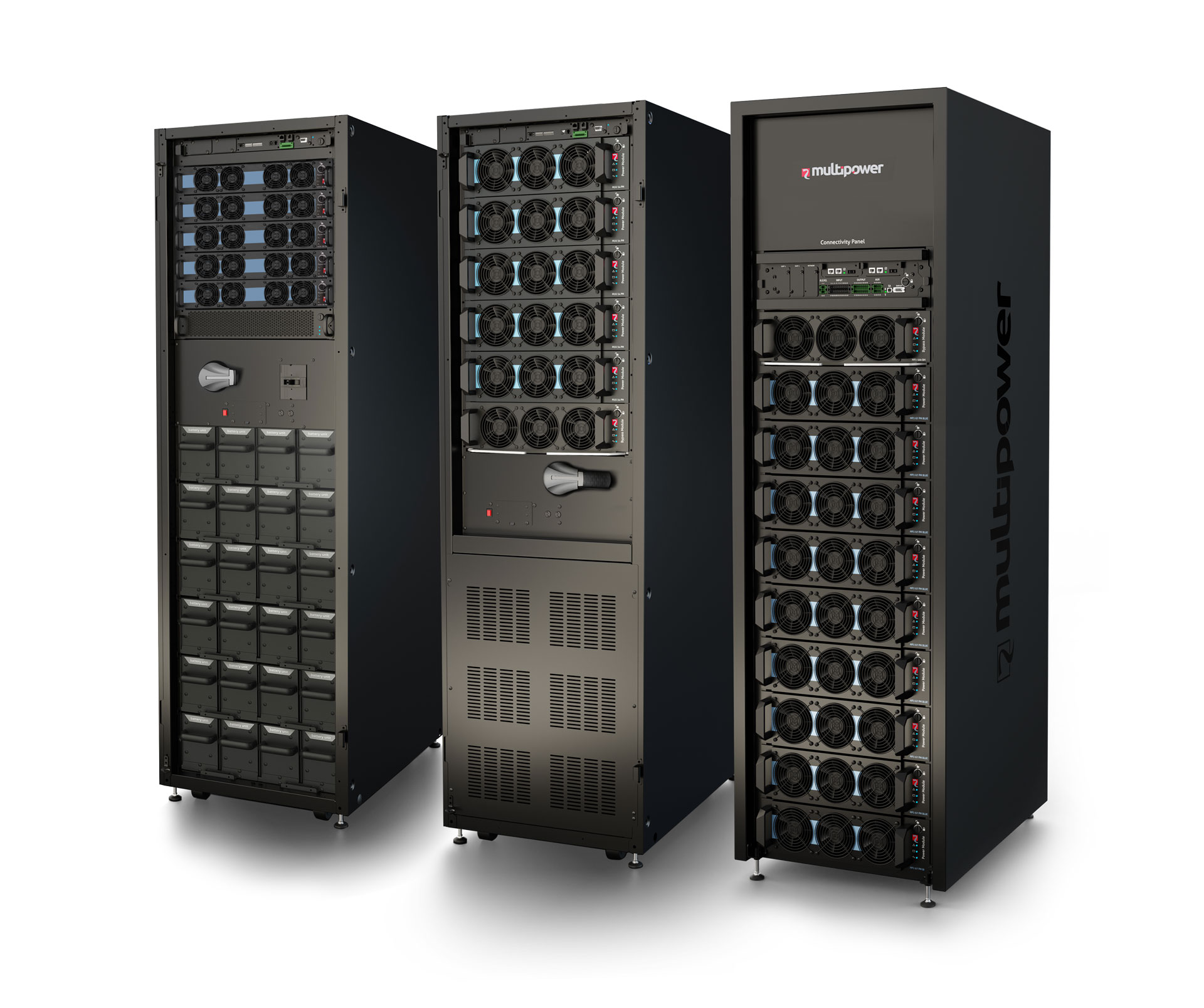

Several configuration and frames are available:

PCM: very compact solution with integrated manual bypass.

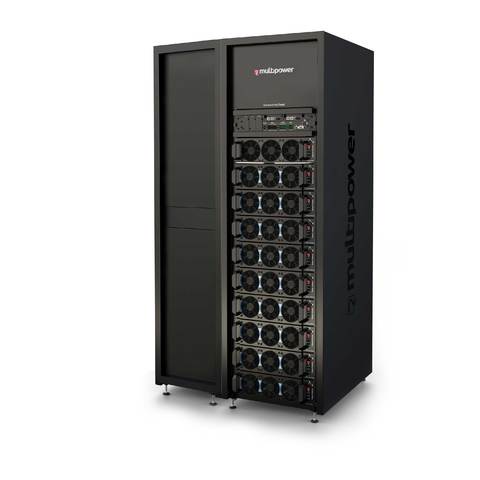

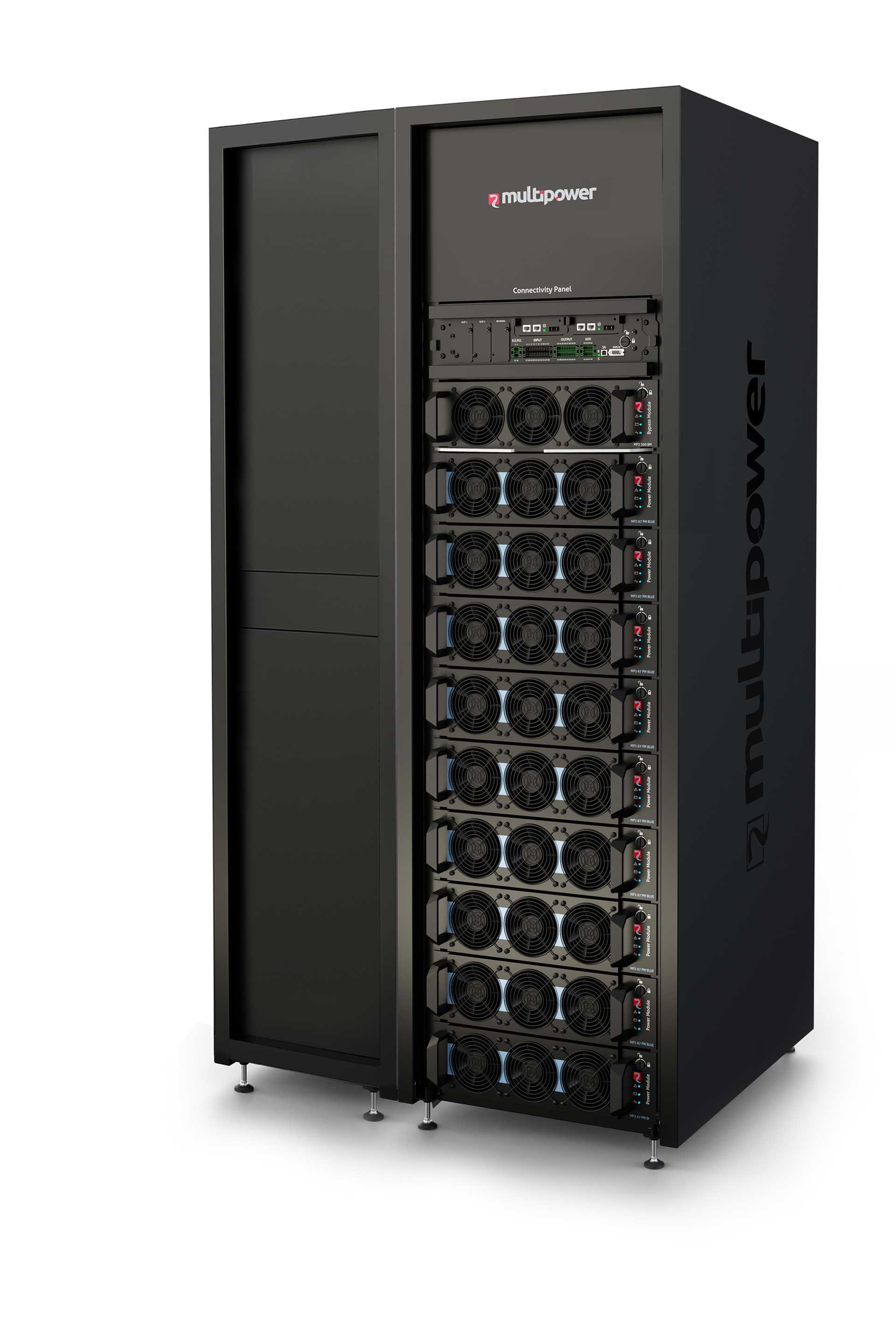

PC0: unit supplied without switches to simplify the integration with the existing electrical infrastructure and to meet any space constraints, available also with top ventilation..

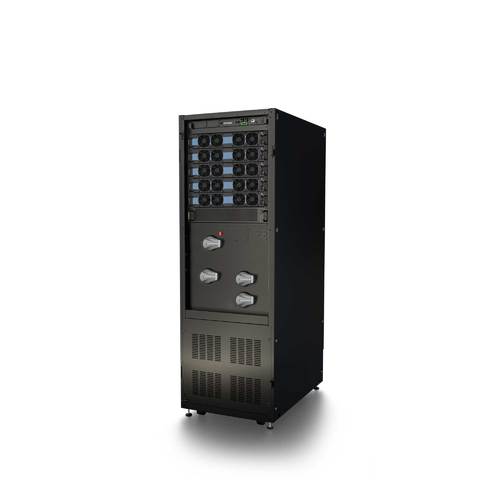

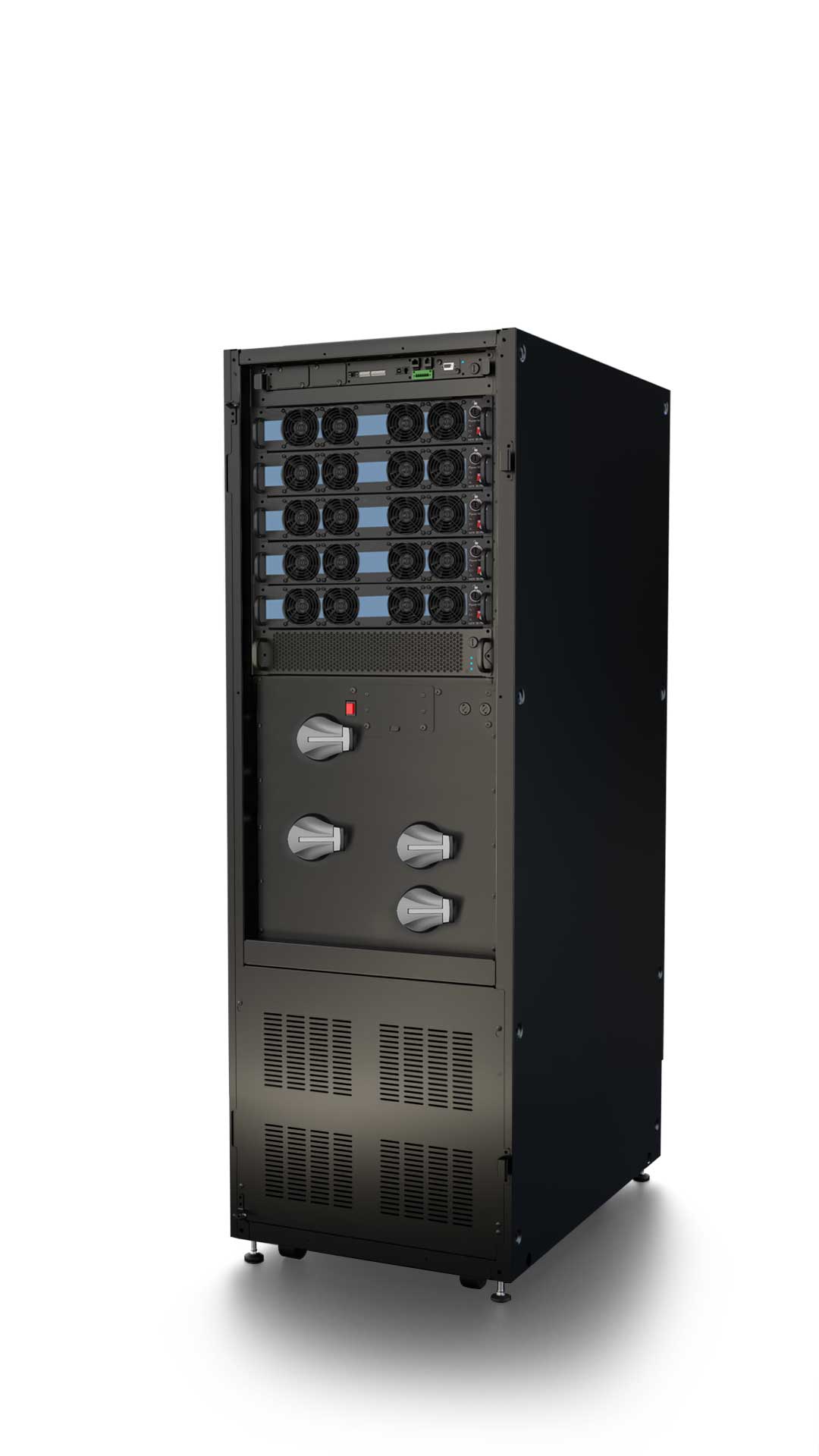

PCS: fully integrated, for a complete, simple and very reliable installation, with main input, bypass, manual bypass, output switches and top ventilation.

Smart Architecture

The Multi Power2 is the result of a new design approach focused on a deep interconnection between hardware and software. It provides an extremely reactive system which ensures business continuity in every operating condition.Intelligence is distributed to ensure the protection of the equipment even on the off chance of a fault on a power module, automatic health-checks are performed during the plug-in of each module to verify its status and avoid defective components and automatic alignment of the firmware is carried out when a module with different firmware is inserted.

Thanks to the embedded intelligence, power computing capacity, and outstanding connectivity, we can monitor remotely the status of the UPS and provide dynamic and bespoke after sales services to maximize the life of the unit.

Multi Power2

HIGHLIGHTS

Brochures and data sheets

Riello UPS Unveils Multi Power2: A Smarter, Greener UPS Solution for Modern Data Centers

Gallery
