HIGHLIGHTS
-
Frequency Converter 50/400 Hz
-
Output voltage: 208 V - 3F
-
Galvanic isolation
-
Applications: airport, military and naval
-
Battery backup
Master FC400
Power Range:
30 - 125 kVA
3:3

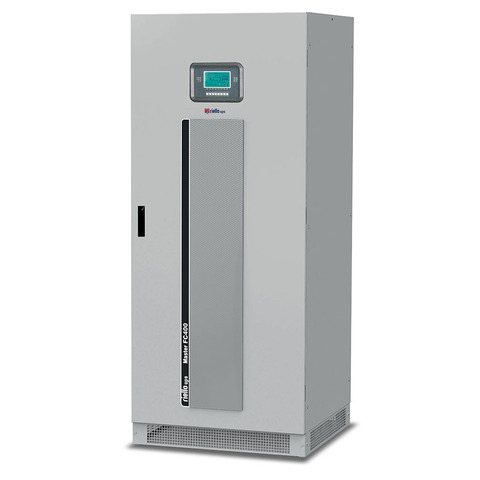

Master FC400 series static Frequency Converters are available from 30 to 125 kVA, with 50 or 60 Hz input and 400 Hz output. The result of extensive experience acquired in the UPS industry, the Master FC400 series is distinguished by the use of technologically advanced components and for excellent reliability, ease of maintenance and ease of operation.
The Master FC400 series uses double conversion technology (VFI SS 111 voltage and frequency independent compliant with IEC EN 62040-3), with an integrated output transformer to ensure the galvanic isolation of the load from mains disturbances under all conditions.
The output voltage is 208 V threephase (adjustable 200-215 V). Thanks to high frequency IGBT technology and digital control, Master FC400 Frequency Converters are ideal for airport, military and naval applications.
Technical specifications of the model
Minimum impact on mains – easy source
The Master FC400 was designed to reduce to a minimum the impact on the mains or generator located upstream, thanks to the low harmonic content input and the progressive start of the rectifier. These features make the Master FC400 frequency converters especially compatible with generators.
Easy installation and maintenance
The Master FC400 requires a small space for installation (only 0.86 m2 for a 125 kVA model).
The main assemblies of the UPS can be easily accessed for maintenance, via the removable front panel. Fans located in the top of the UPS cabinet, eliminate the need for side or rear access, and allow the UPS to be placed against a wall.
Applications
Master FC400 provides additional protection for a wide range of applications, including:
- Powering airplanes in airports;
- Radar and flight-control systems;
- Naval applications;
- Military applications;
- Power for test benches.
